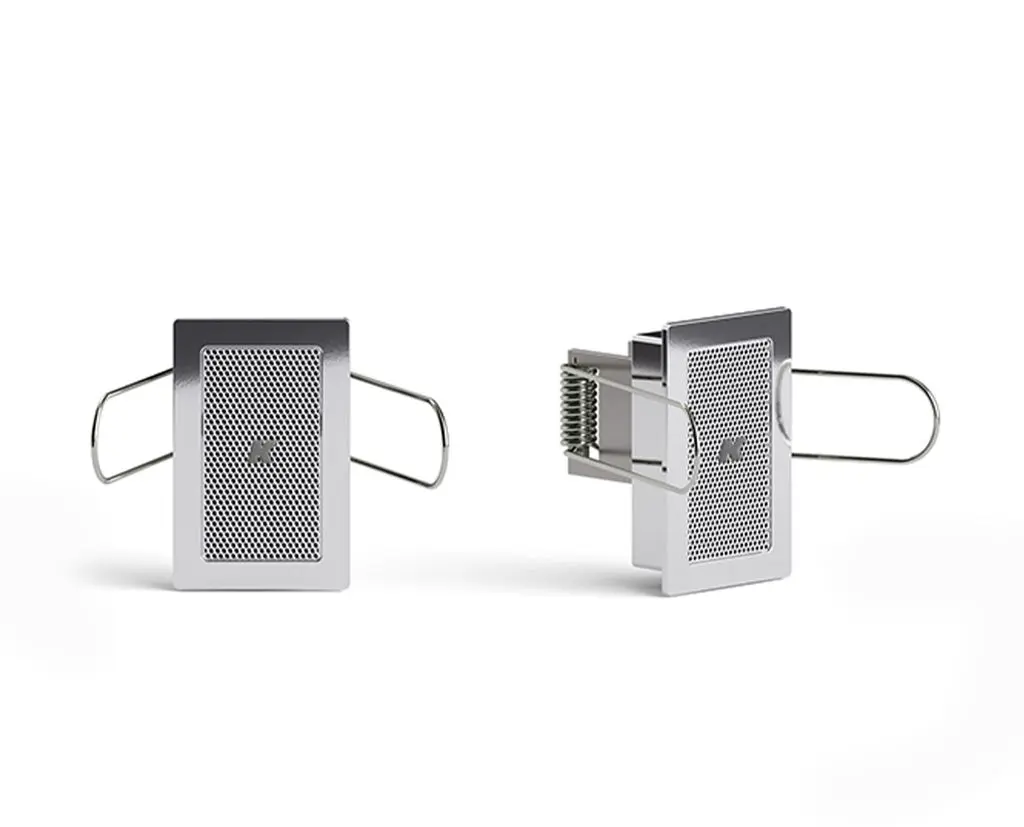

Lyzard-KZ1R I

The K-array’s Lyzard-KZ1R I is a mini point-source loudspeaker delivering high-quality audio in a sleek 2.8 x 4.3 x 1.1 cm aluminum build, weighing just 21g. With a horizontal and vertical coverage of 140° and a frequency response from 500 Hz up to 18 kHz, KZ1 I provides clear audio reproduction and flawless intelligibility at a peak SPL of 86 dB, an impressive performance for a miniature loudspeaker.

Equipped with a metallic spring clip for easy in-wall mounting, a magnetic grille for fast access, and a streamlined setup process, the KZ1R is user-friendly and versatile. Pair with K-array’s Truffle or Rumble subwoofers and Kommander amplifiers for complete audio performance.

Choose from black, white, custom RAL colors, or luxury finishes like 24K gold, making the KZ1R perfect for stylish settings such as retail spaces, lounges, homes, and museums.

SPECIFICATIONS

GENERAL

Type: Point source

Transducers: 0.5" neodymium magnet woofer

Frequency Response: 500 Hz – 18 kHz (-6 dB) (1)

Max SPL: 86 dB (peak) (2)

Rated Power: 3.5 W

Coverage: V. 140° | H. 140°

Connectors: IN+ IN- screw terminals

Nominal Impedance: 16 Ω

REGULATIONS

IP Rating: IP64

HANDLING AND FINISHES

Dimensions (W x H x D): 28 x 43 x 11 mm (1.1 x 1.7 x 0.4 in)

Weight: 0.021 kg (0.046 lb)

Material: Aluminum

Colors: Black, White, Custom RAL

Finishes: 24K Gold, Antique Gold, Rose Gold, Polished

(1) With dedicated preset.

(2) Maximum SPL is calculated using a signal with crest factor 4 (12 dB) measured at 1 m.

Passive loudspeakers require a dedicated preset loaded on board of K-array amplifiers.

New materials and designs are introduced into existing products without previous notice.
