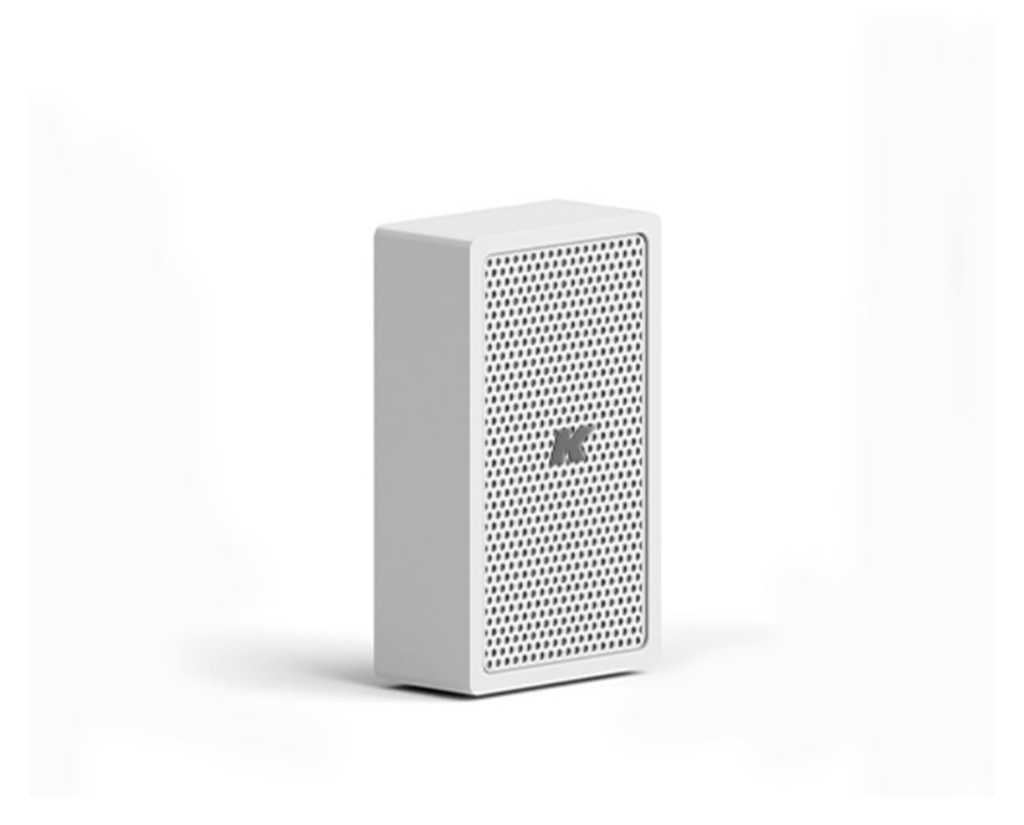

Lyzard-KZ1 I

The Lyzard-KZ1 I is the ultra-mini, point-source loudspeaker from K-array's Lyzard series, boasting a sleek 2.2 x 3.7 x 1.1 cm aluminium enclosure and weighing just 21g. Despite its small size, it delivers clear, high-quality sound with 140° coverage and a peak SPL of 86 dB. Perfect for design-sensitive spaces, the KZ1 offers a 500 Hz to 18 kHz frequency range and works seamlessly with K-array’s subwoofers and amplifiers.

Available in standard colors or premium finishes like 24K gold and rose gold, it includes a magnetic grille for easy setup and maintenance.

SPECIFICATIONS

GENERAL

• Type: Point source
• Transducers: 0.5" neodymium magnet woofer
• Frequency Response: 500 Hz – 18 kHz (-6 dB) (1)
• Max SPL: 86 dB (peak) (2)
• Rated Power: 3.5 W
• Coverage: V. 140° | H. 140°
• Connectors: IN+ IN- screw terminals
• Nominal Impedance: 16 Ω

REGULATIONS

• IP Rating: IP64

HANDLING AND FINISHES

• Dimensions (W x H x D): 22 x 37 x 11 mm (0.9 x 1.5 x 0.4 in)
• Weight: 0.021 kg (0.046 lb)
• Material: Aluminum
• Colors: Black, White, Custom RAL
• Finishes: 24K Gold, Polished

(1) With dedicated preset.

(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.

Passive loudspeakers require a dedicated preset loaded on board of K-array amplifiers.

New materials and designs are introduced into existing products without previous notice.
